12-24V DC 4A 4Channels RGBW Audio LED Controller with RF 24 Keys Remote

MJJC-AUDIO-RGBW-RF24K
RGBW Audio LED Controller With RF 24 Key Remote
MJJC-AUDIO-RGBW-RF24K,adopts advanced PWM (Pulse Width Modulation) digital technology with 4 output channels constant voltage led RGBW music controller.The power is the DC low voltage input mode. The range is DC12V-24V.Adopts RF 24 key remote ,RGB and W each has independently control area,without interference. As the Ⅳgeneration product, it achieve the perfect music control effect and user experience, basic on the audio analysis technology and more user-friendly remote control design.

Features:
 This is constant voltage rgbw music controller , supply voltage DC12-24V,In this range power supply can be universal.
 Adopts PWM digital technology,5 dimmer degree ,no-flicker;
 Signal frequency:400Hz;
 Max.output: 16A ,4A*4channels;
 RF 24-key wireless RF remote
 There are 16 kinds of RGB modes, including 9 static colors ;4 dynamic changes ; 3 audio mode, respectively:♫ DJ(Fast Track)、♫ Dynamic (universal rhythm changes)、♫ Tenderness (slow-paced change); the brightness of static color and the speed of dynamic changes are adjustable. The sensitivity can be adjusted in audio mode.
 In audio mode,the sensitivity can be adjusted via black gear knob; the higher of the sensitivity adjustment is to knob clockwise;
 To achieve audio control via two method: a microphone and an audio line;
 “W” only has static mode only, independently adjust the brightness and on/off switches .
 Design for: LED constant voltage products, led RGB strip lights, single color light bar, RGBW and horse racing lights.
 Warranty of this product is one year, but exclude the artificial situation of damaged, destroy in, transit after purchase as well as a variety of external factors, such as the case of damage caused by natural forces caused. overload working.

Technical Parameters:
Working temperature:  -20-60℃
Supply voltage:  DC12V~24V
0utput : 4 channels
Output gray 256 levels (with continuous reception)
Connecting mode common anode
External dimension:  108mm*63mm*28mm
Packing size:  109mm*109mm*53mm
Net weight:  120g
Gross weight: 180g
Output current: <4A(each channel)
Output power :  12V:192W;           24V: 384W
RF frequency 433.9MHz

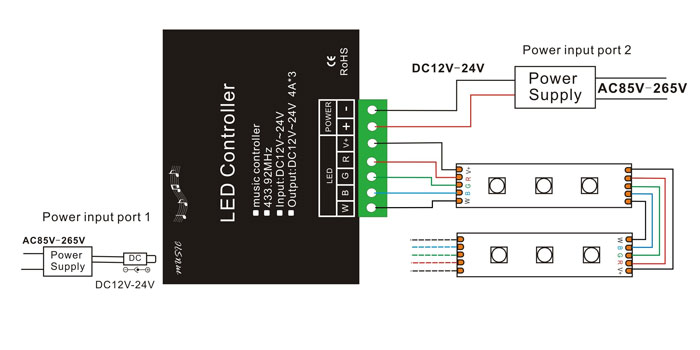

How to connect to RGBW LED Controller with 12V 24V RGBW led strip ?
