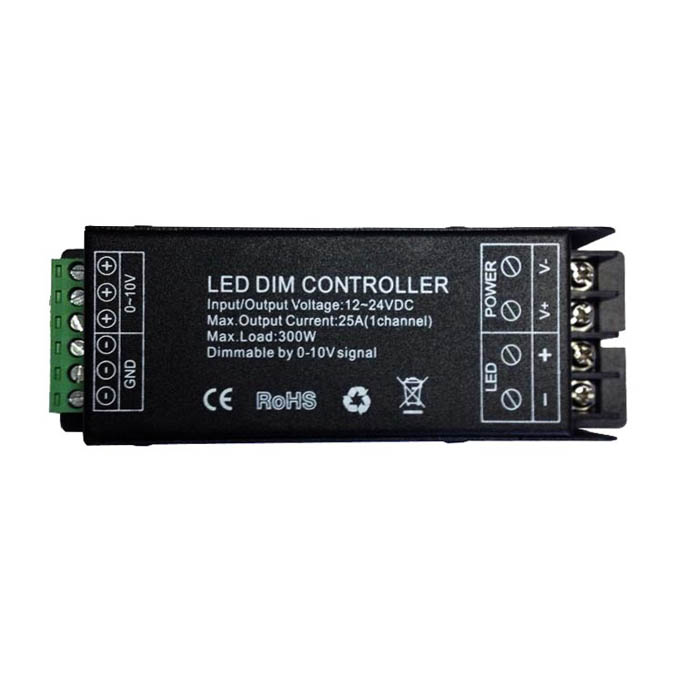

0-10V LED Dimmer Controller 300W

0-10V LED  Dimmer

0-10V dimmer adopts the advanced micro control unit, It can receive the 0-10V analog control signal which is internationally widely used. It changes the signal into PWM control signal to actuate the LED lamp. Dimming range from 0-100%, stable and soft.

Product Feature

• Adopt the advanced micro unit.
• Receive the 0-10V analog control signal which is internationally widely used.
• PWM control signal to actuate the LED lamp, dimming from 0-100%,stable and soft.
• PWM signal frequency:2KHz.
• Output gray,256 levels.
• 2-year warranty.

Technical Parameters

Interface Specifications

0-10V analog signal input/output interface

6PIN screws port

How to connect 0-10V Led Dimmer Controller ?
