110-220V AC to 12V DC 6A 72W LED Dimmer

Specifications of 12V 6A 72W LED Dimmer
Working temperature: -20-60 ℃

Static power consumption: <1W

Supply voltage: AC85V-265V

Output voltage:DC12V

output Max load current: 6A

Product size: L114×W64×H25 mm

Package size: L137×W82×H45mm

Net weight:260g Gross weight:300g

Output: one CMOS drain- open

Function: can achieve stepless dimming

Control method:

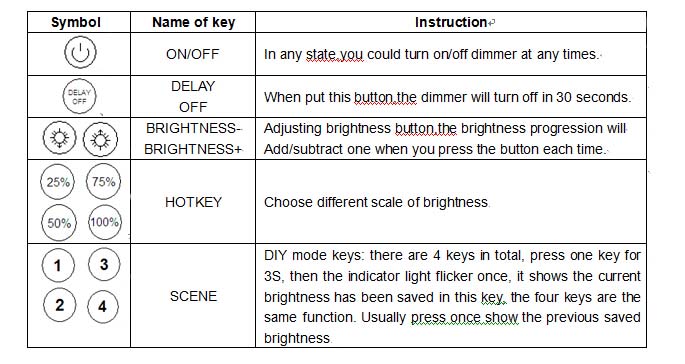

Adopt IR remoter to control the dimmer,which has 12 buttons,the function of each button as below:

Wiring Diagram:

Easy to connect,Plug in AC 110-220V,dont need extra power supply,widely used for 5M 5050 60LEDs/M Single Color LED Strip Lights
