12-24V 24A RF RGB LED Touch Controller
- 24A Output
- 3Channels * 8A per channel
- 12-24V DC
- Touch Remote
- CE/RoHS/R&TTE approved
- LED Synchrounous Controller by RJ45 Internet Cable
LED RGB Controller with Full Touch Remote Control
MJJC-SZ600-TOUCH, adopts the advanced micro control unit, it is used for controlling a variety of LED lamps. For instance, point source of light, flexible light strip and so on; it has many advantages such as touch remote control, easy connection and simply to use. Meanwhile, you can adjust brightness, static color choices and various dynamic changes in lighting effects through wireless touch remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Especially, MJJC-SZ600-TOUCH designed with Synchronization function. It is convenient to use RJ45 connector to connect the multiple controllers together, and achieve the synchronization function of thousands meters led strips.
Product Feature:
MJJC-SZ600-Touch is constant voltage, suit for all kinds of the constant voltage LED RGB lamps.
There is a RF remote touch control 5 functions, 1 color ring and 1 color sense lamp in the center, all buttons are in the touch form, the color ring have 128 levels in different colors.
Using RJ45 connector to connect the multiple controllers together, and achieve the synchronization function of thousands meters led strips.
There are 9 modes in total, including 2 white static colors and 7 dynamic modes. The brightness of all static color and the speed of the dynamic modes are adjustable.
2-year warranty.
Technical Parameters:
| Working temperature | -20-60℃ |
| Supply voltage | DC5V,12V~24V |
| Output | 3 channels |
| Connecting mode | common anode |
| External dimension | L91*W88*H24 mm |
| Packing size | L106*W106*H66 mm |
| Net weight | 300g |
| Gross weight | 320g |
| Output gray | 256 levels （RGB each） |
| Output current | 8A(each channel) |
| Output power | 12V:<288W, 24V:<576W |
| RF frequency | 433.92MHz |

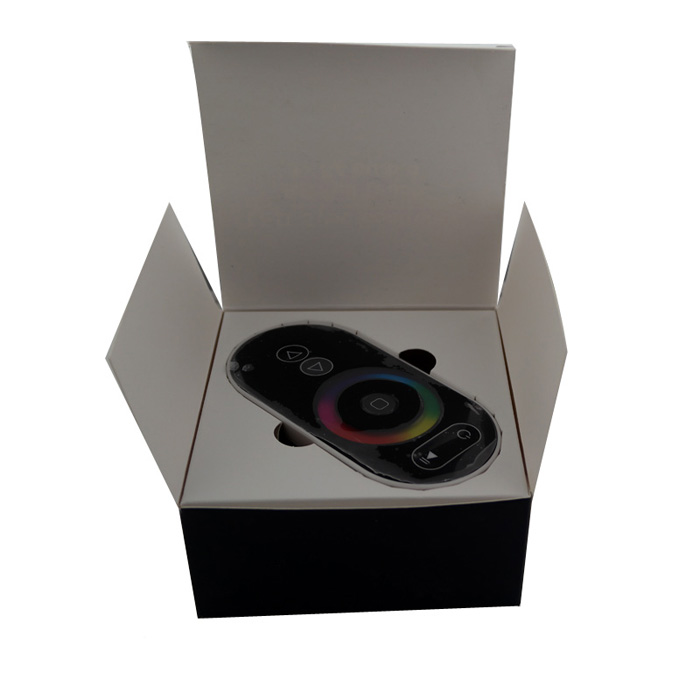

This product use RF touch control, with one color ring and 5 function buttons
RF LED Touch Remote Controller
The function of each button as below:
| Name of key | Instruction | Remarks |
| ON/OFF | ON or OFF in any time | |
| Pause | Pause or Continue | |
| Mode | The mode will go to next, when you touch the key each time | 9 modes in total. |
| Speed/Brightness + | The Speed/Brightness will add, when you touch the key each time | Speed for dynamic modes, Brightness for static modes. |
| Speed/Brightness – | The Speed/Brightness will subtract, when you touch the key each time | Speed for dynamic modes, Brightness for static modes. |
| Color Ring | Touch any color which you want |
9 modes in total as below:
| No | Patterns | Remarks |
| 1 | Static warm white | Brightness is adjustable, speed is unadjustable |
| 2 | Static cool white | |
| 3 | White breath | Speed is adjustable, brightness is unadjustable |
| 4 | Seven-color jumpy changing | |
| 5 | Seven-color smooth | |
| 6 | Seven-color fade | |
| 7 | R/B crossfade | |
| 8 | B/G crossfade | |
| 9 | G/R cross fade |
Controller (Receiver) connection as follows:
RGB LED Sync Controller 12V 24V DC 24A
Option 1: Independently Control Wiring Diagram
Option 2: 1pc Master Controller + Sub-controller controlled by one Touch Remote
So that you can control hundreds of meters 5050 RGB LED Strip Lights synchronously by one Remote for some building lighting projects.
