12V 24V 12A Wifi LED Controller with RF Wireless RGB/DIM/CT Touch Remote

WIFI-LED Controller with RF Touch Remote (Can be connected to Home Router)
MJJC-WIFI-V01 controller appeared with the installation of controlling software on mobile devices with Android or IOS system, such as android phone, Iphone, tablet PCs, they can remote control LED lighting products through Wi-Fi, which makes LED control more intelligent and humanization. One WIFI-V01 controller can be used as dimmer, CT controller, and RGB controller, only need to select the right control interface in the software. In addition, this model has DIY function. Users can get any effect they want based on our controlling software. If you don’t have any mobile devices with the controlling software at hand, you could also use our RF remote control to control it. This model designed for constant voltage led products, such as led strip, led modules. For controlling more led products, amplifier is available.

Product Feature

• Support both Wi-Fi control of Apple products (iPod, iPad, Iphone), Android mobile devices like Samsung, HTC, and RF wireless remote control.
• With the 3-in-1(Dimming, CT, RGB) apple/android software. One device suit to different lighting application scene.
• Memory function to save scenes anytime anywhere for next play.
• WIFI-V01 is designed for constant voltage led products, working voltage auto fit to DC12-24V.
• Wi-Fi control based on 2.4GHZ frequency, RF remote control based on 433.92MHz.
• 2 year warranty.

Technical parameters

1. Controller

2. RF remote control

3. Software

Controller operation illustration

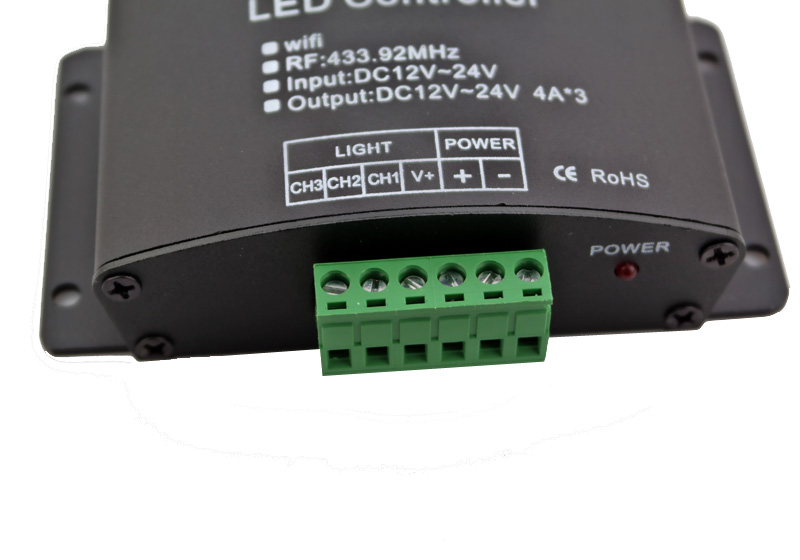

1. Connector illustration

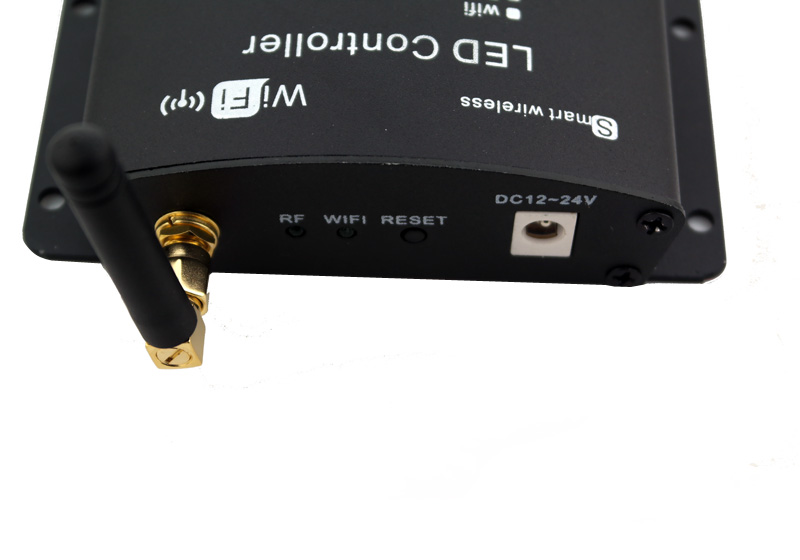

2. Working state instruction

RESET key：Press and hold at least 5 seconds, WIFI previously set data will be cleared to return to the factory default.

•  Controller connection

(1) RGB connection:：connect CH3→B、CH2→G、CH1→R、V+→COM；

（2）CCT connection：connect CH2→WC、CH1→WW、V+→COM；

Connect to Warm White + Cool White LED Strip Light

(3)DIM connection：connect CH1→V-、CH2→V-、CH2→V-、V+→V+；

Connect with Single Color LED Strip Lights

1. RF remote control operation illustration

• RGB full touch remote control:

Adopt RF touch control, with one color ring and 5 function buttons.

Touch Remote Function of the Key

The function of each button as below:

9 modes as below:

• CT full touch remote control:

Adopt RF full touch remote control with one color temperature ring and 5 function buttons.

Color Temperature Adjustable Remote

The function of each button as below:

9 modes in total as below:

•  Dimming full touch remote control:

Adopt RF full touch remote control with one dimming ring and 5 function buttons.

Single Touch Dimmer Remote

The function of each button as below:

3 modes in total as below:

This series RF full touch remote control will sleep down in more than 20 seconds no used to save the energy. In this case, the touch ring will be no reaction, please touch any one of the 5 function buttons to wake up the remote control firstly.
