2016 New LED Dimmer for 12-24V Single Color LED Strip Lights

Model: MJJC-IRBT001-DIM

IR BT remote LED Dimmer

MJJC-IRBT001-DIM, adopts the advanced micro control unit, it is used for controlling constant voltage single color LED lamps. For instance, led module, flexible led strip and so on. Meanwhile, you can turn on/off, adjust brightness for different lighting effects through infrared 14keys remote control.

Product Features

• Designed for single color constant voltage LED lights, working voltage DC12-24V.
• Single channel output, Max. load current: 1CH*6A; Max. load power: 72W/12V; 144W/24V.
• Adopts IR 14keys remote control with fashion appearance, distance up to 10 meters in the open air.
• Memory function, each time power-on reserve the mode which stop in the last power-down;
• 3 modes in total, including static colors and 2 dynamic changes.
• The brightness of static color is adjustable, 256 levels in total; the speed of dynamic changes is adjustable, 100 levels in total.
• Long-press the brightness and speed key can get the fast adjustment, convenient for operation.
• Warranty of this product is one year, exclude the artificial situation of damaged or overload working.

Technical Parameters

Controller:

Remote control:

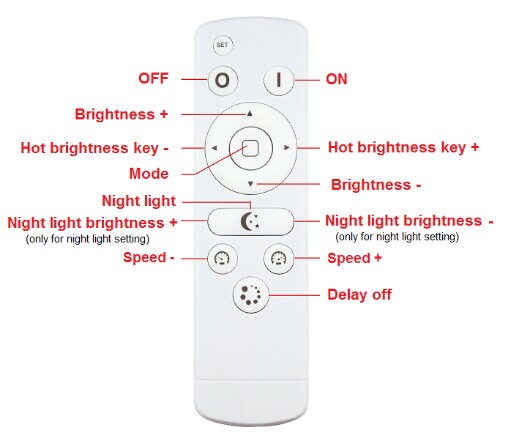

Remote Control Function:
