4Channels RGBW Touch Panel LED Controller 12V 24V 24A
- 4 Channels output for RGBW/RGBWW Led Strip Lights
- 12-24V DC, 24A (6A*4CH)
- Wall Touch Panel Remote Control (86 type / 120 type )
- 2 Years’ warranty
- CE/RoHS
Model: MJJC-SZ600-WP86-RGBW
Specifications:
- Working temperature: -20-60 ℃
- Supply voltage: DC12~24V
- Product size: L91×W89×H24mm
- Net weight: 340g
- Output: Four CMOS drain- open output
- Connecting Mode: Common anode
- Max load current: 6A each color (24A totally)
- Control Method:

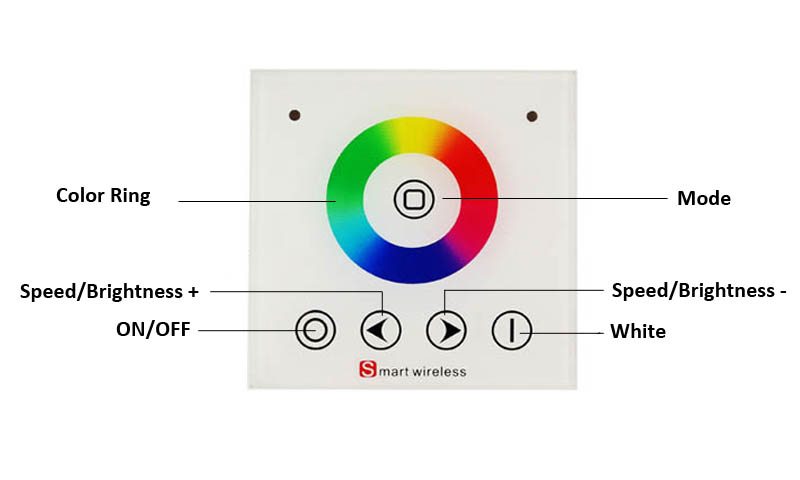

Adopt RF remote to control the led controller, the function of each button as the table below:
| Name of key | Instruction | Remarks |
| ON/OFF | RGB:ON or OFF in anytime | |
| White | White:ON or OFF in anytime | |
| Mode | RGB:The mode will go to the next,when you touch the key each time | 9 modes in total |
| Speed/Brightness + | RGB:The Speed/Brightness will add,when you touch the key each time
White: Brightness add |
Speed for dynamic mode,Brightness
for static mode. |
| Speed/Brightness – | RGB:The Speed/Brightness will reduce,when you touch the key each time
White: Brightness reduce |
Speed for dynamic mode,Brightness
for static mode. |
| Color Ring | RGB:Touch any color which you want |
Style changing table as below:
| NO | Patterns | Remarks |
| 1 | Static warm white | Brightness is adjustable,
speed is unadjustable |
| 2 | Static cool white | |
| 3 | White breath | Speed is adjustable,
brightness is unadjustable |
| 4 | Seven-color jumpy changing | |
| 5 | Seven-color smooth | |
| 6 | Seven-color fade | |
| 7 | R/B cross fade | |
| 8 | B/G cross fade | |
| 9 | G/R cross fade |
Synchronous function ：Synchronous control system can be made of any number of controller connections. Each of the sub-controller would follow to the first master controller to achieve a permanent synchronous change. And there is not delay.
How to connect with RGBW / RGB+ Warm White LED Strip Lights ?
RGBW LED Controller Receiver
