12V 24V 24A LED Sync Dimmer with Touch Remote

RF Touch LED Dimmer
MJJC-SZ600-DIM, adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, especially design for single color led strip. Adopt full touch RF remote control. 5 function buttons and 1 dimming ring in the center, all buttons are in the touch form, and the dimming ring has 128 levels in different brightness value. Particularly, there is a sense light in the remote control center. It shows the exactly light which is touched. As the led strip is the same. Further, there are 3 dynamic modes in the mode button, and the speed is adjustable.
Especially, MJJC-SZ600-DIM designed with Synchronization function. It is convenient to use RJ45 connector to connect the multiple controllers together, and achieve the synchronization function of thousands meters led strips.

Product Feature

• Adopt PWM technology, dimming from 0% to 100%, smooth and flicker-free.
• PWM signal frequency:2KHz.
• High watt output design, up to 288W/12V. Three channels output, each maximum current is 8A.
• Easy connection to achieve multiple dimmers sync-work by RJ45 terminal.
• Adopt RF remote control technology and full touch design.
• Designing for: LED constant voltage single color product like LED single color strip.
• 2-year warranty.

Technical Parameters

Interface specification:

Synchronously Controller LED by RJ45 Internet Wire

LED Sync Controller 12V 24V DC 24A

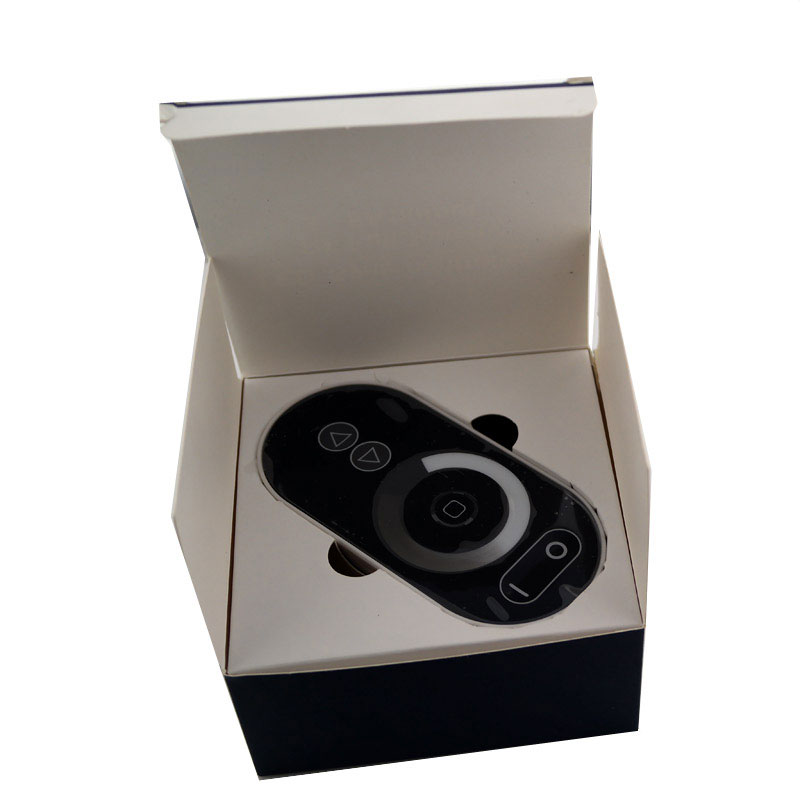

Adopts RF full touch control, with one dimming ring and 5 function buttons.

Single Touch Dimmer Remote

The function of each button as below:

3 modes in total as below:

Diagram of Touch LED Dimmer work with single color led strip lights:

24A Powerful LED Dimmer 12V 24V for 20M 5050 60leds/m Led Strip Lights

One Remote to control all single color led strip light dimming changes for projects
