12V 24V RGBW LED Strip Light 5M 60LEDs/M

Product Name: RGBW/RGBWW SMD5050 Flexible LED Strip Lights

Model: MJJC-SMD505060-RGBW-12V

Light source: 5050 SMD LED strip.

LED Qty: 60Leds/M

LED Chip: Epistar Chip

Emitting color : RGB+W or RGB+Warm White

Viewing angle : 120 degrees

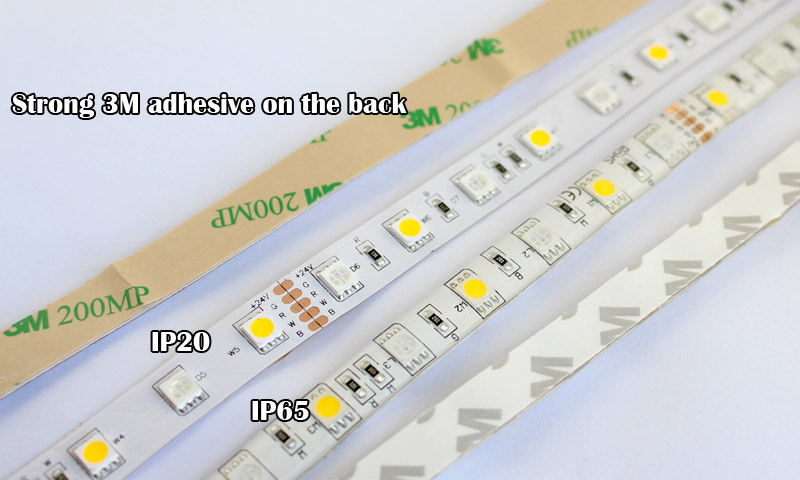

3M adhesive tape in backside, every 3 leds cuttable.

Operating Temperature : -25 ~ +60 °C

Storage Temperature : -40 ~ +80 °C

Voltage:DC 24V(12mm width PCB board ) /DC12V (10mm/12mm24 width PCB Board)

Strip width: 12mm PCB Board for 24VDC ,10mm PCB board for 12VDC

PCB Raw Material: Double-side quality PCB,not single side PCB(cheaper)

Package: 5M/Roll,anti-static bag package

Waterproof Grade : Non-waterproof (IP20), Glue-dropping waterproof IP65, Silicon Tube waterproof IP67 are optional , IP68 (Silicon Tube + Silicon)

How to connect RGBW/RGBWW Flexible Led Strip Lights to the RGBW 4Channels LED Controller ? please kindly check the following wiring diagram:

Project Appliction — Under Cabinet Lighting at your house
