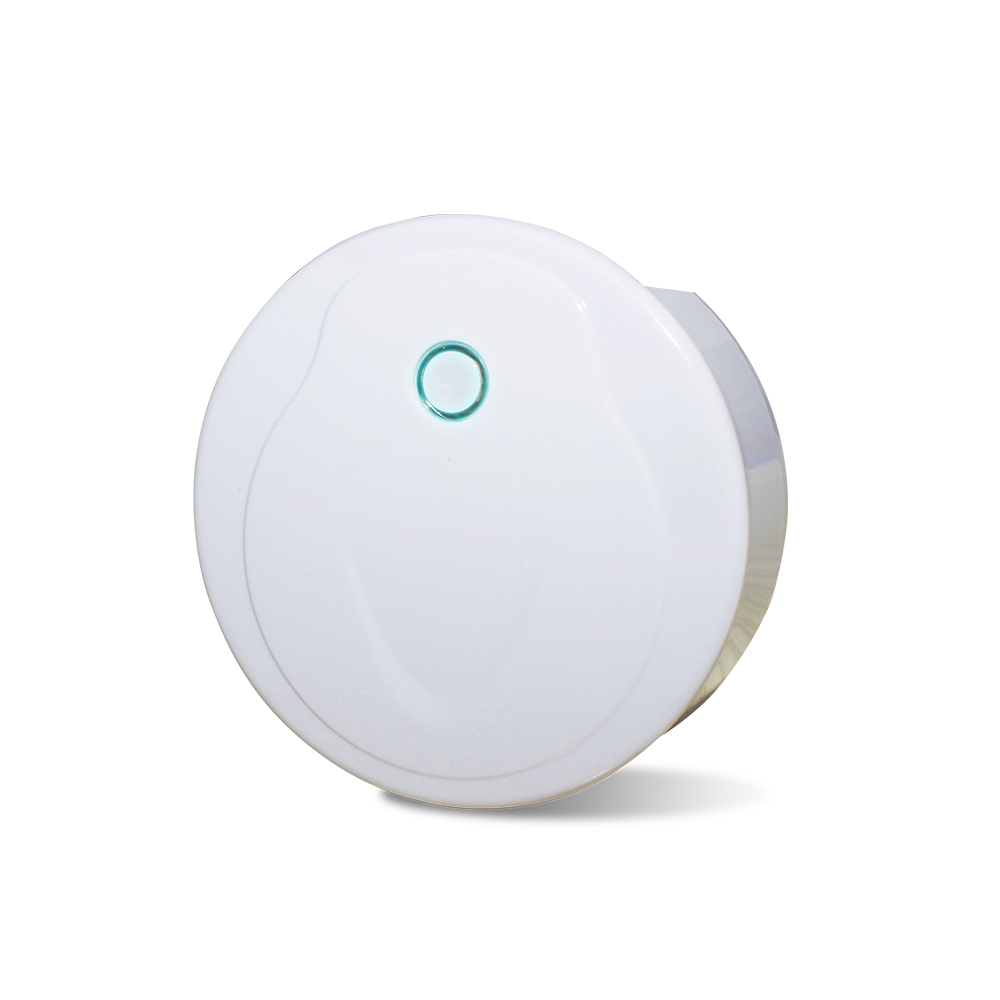

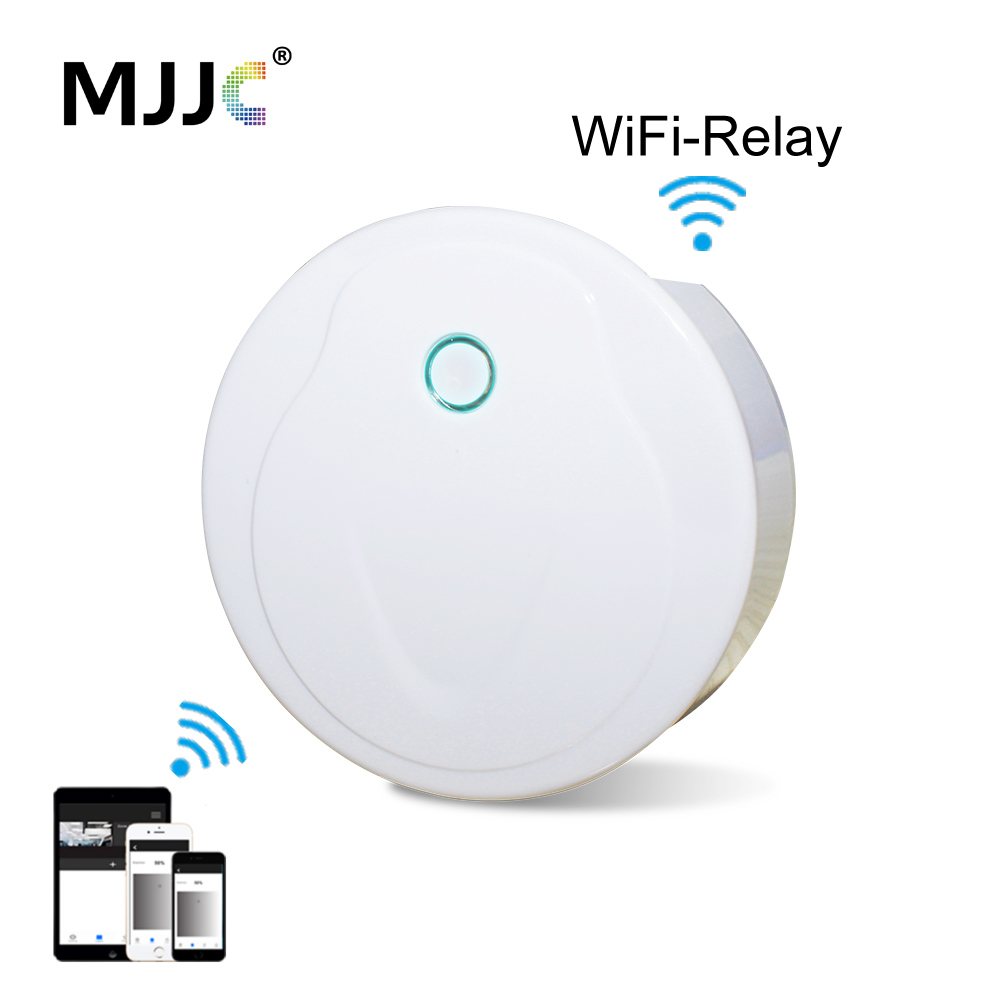

Wifi LED Controller UFO DC 5V 12V 24V Master Receiver WiFi Relay to RF Converter RGB Strip Dimmer Smart Home Work with V1 V2 KS S1-B etc.
The WiFi-Relay controller converts WiFi signal to RF signal, also know as WiFi gateway or Wifi hub. it is compatible with multiple type of Skydance receivers. With WiFi-relay, you could control single color, dual color, RGB, RGBW, RGB+CCT LED lights by smart phone.

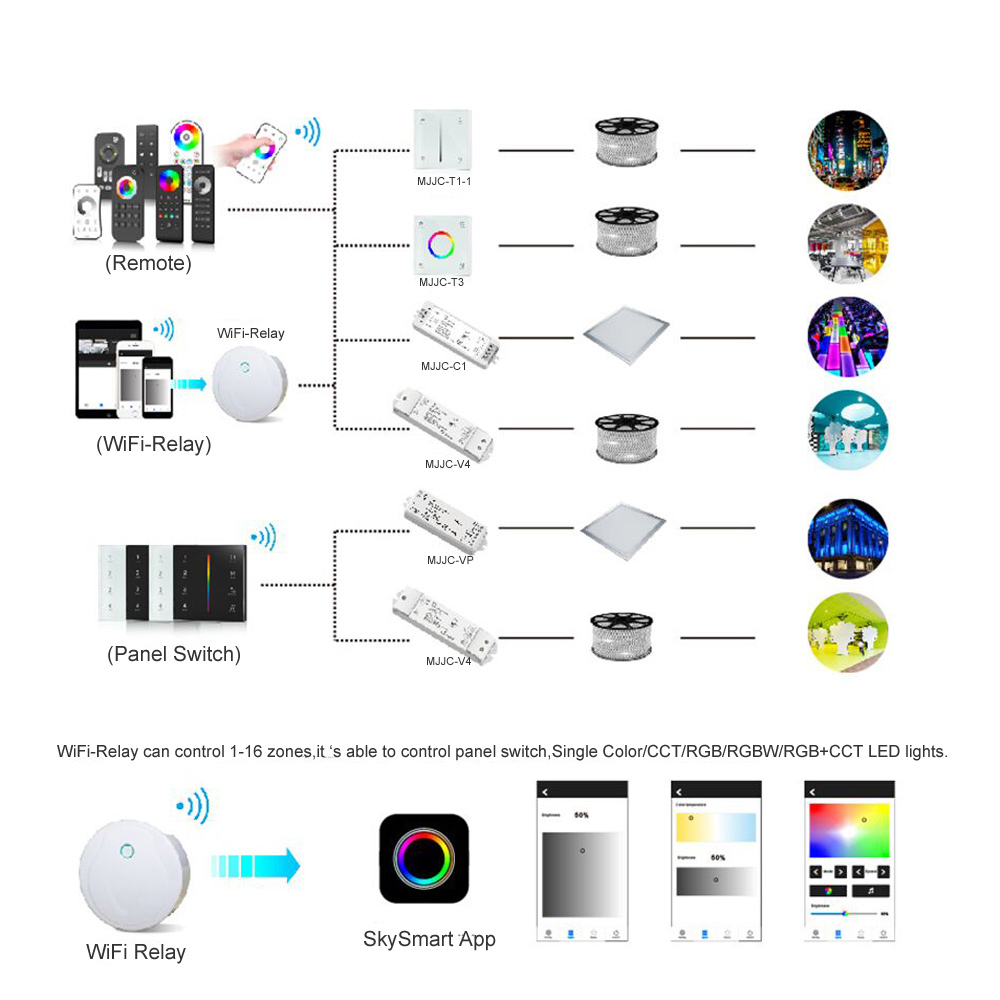

Note: This product can not be used alone，This wifi to RF converter need work with V1, V2, V3, V4, VP, KS, S1-B etc wireless receivers
IF you want only 1-2pcs small orders, welcome to Click the photos to BUY Online as follows:
Technical Parameters
● Input voltage : DC5-24V Input voltage
● Operation frequency: 2.4G
● Remote distance: 30m
● Working temperature: -30℃~55℃

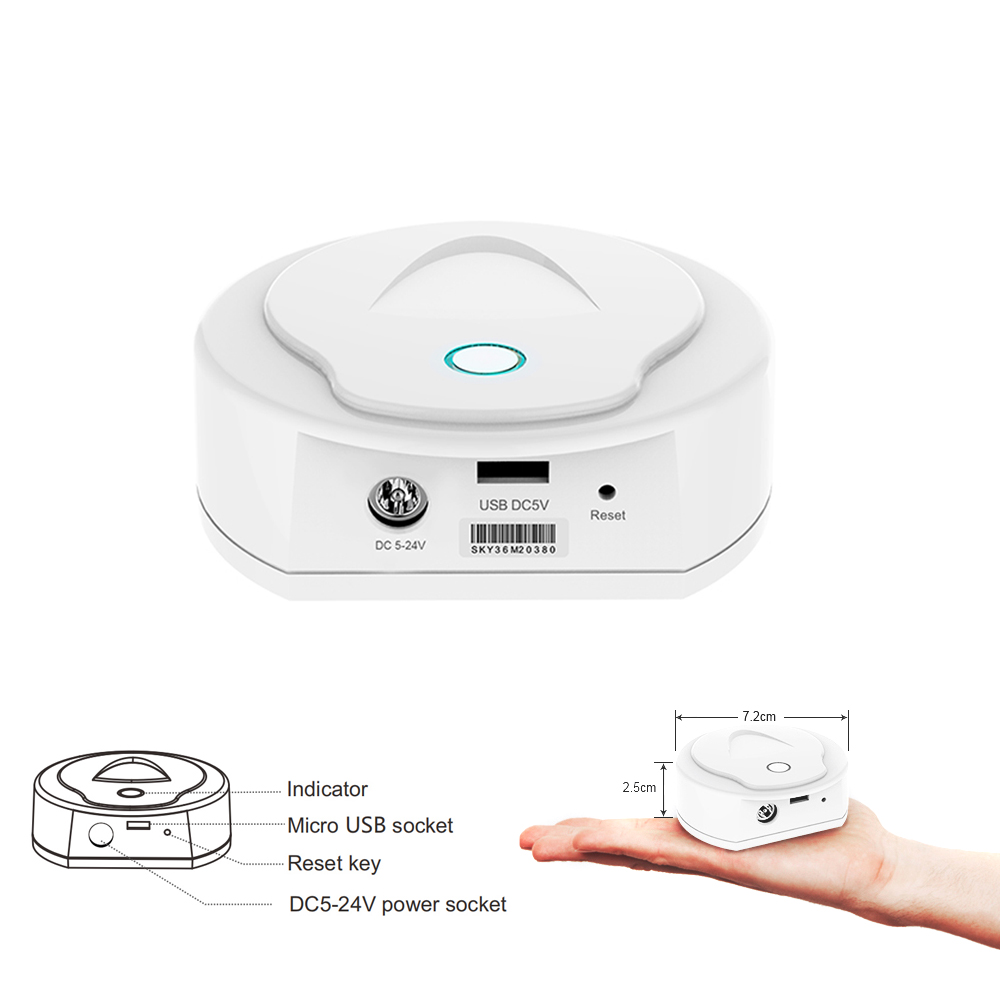

● Product size : Φ72×25mm
Features

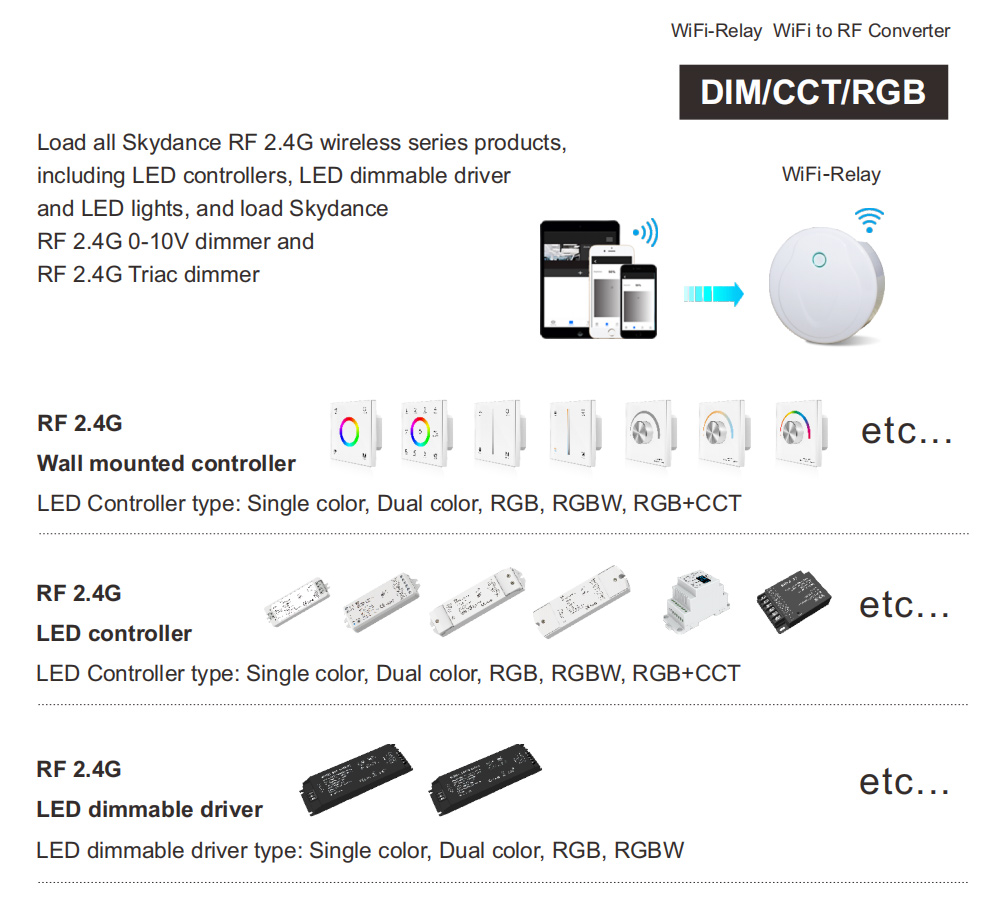

● Can mix load all Skydance RF 2.4G LED controllers, LED dimmable driver and smart lamp.
● Can realize dimming, color temperature, RGB, RGBW, RGB+CCT light effects.
● Load 1-16 zones, 8 scene memory.

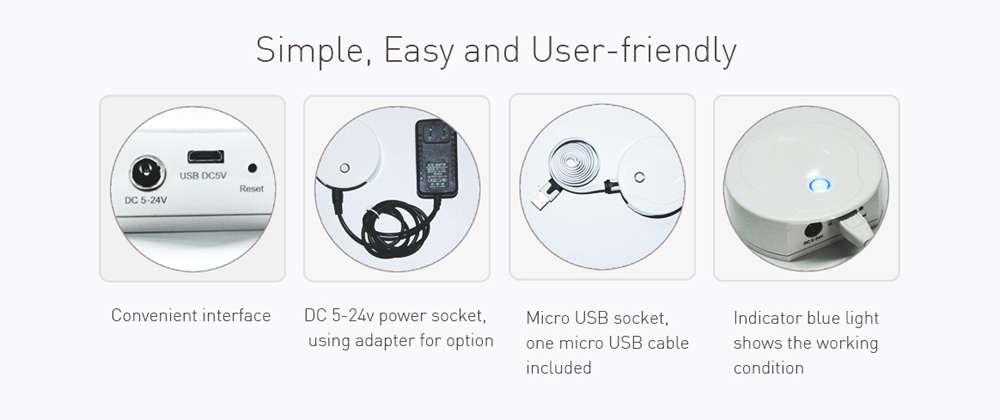

● Including one micro USB cable.
● Android / IOS software name: SkySmart.
Software installation
1. Download application from ‘app store’ or ‘google play’ by searching ‘SkySmart’ .
2. If the WiFi-Relay controller has connected with router,
then connect your smart phone to your router network.
If the WiFi-Relay controller did not connect with router,
then connect your smart phone to the WiFi-Relay controller network directly.
3. Open the SkySmart application and operate according below instructions.
WiFi controller connection
1.Connect WiFi controller to your home network (Recommend for daily use)
1) Enter mobile device’s WiFi setting, search and connect WiFi controller(Skysmartlight).
2) Open SkySmart App and choose ‘Settings’.
3) Choose ‘Connect home internet network’.
4) Press OK,it will search all the router around automatically.
5) Choose router we want connect, enter password then press OK.
● If the router was changed or lost, and Skysmartlight network can not be searched in network list,
you can long press reset key for 10s to restore factory settings, then repeat above steps again.
2. Direct connect Smart phone to WiFi controller (for edit this WiFi controller’s name and password)
When WiFi signal is not available, you could use this direct connection mode control your LED lights.
1) Enter mobile device’s WiFi setting, search and connect to this WiFi controller(Skysmartlight).
2) Start use Skysmart App.
● WiFi controller’s name and password could be edit only under this direct connection mode.
Choose ‘Settings’, then Choose ‘Change WiFi-controller’s name and password’ , input new name or password, press OK.
● If you forget password, you have to restore factory settings (long press reset key for 10 seconds).
Add, edit or delete light zone and match receivers
1) Choose ‘Lights’, then click below + or – key to add new light zone or delete light zone.
2) Click right-top key to edit all light zone.
3) Click light zone name to edit light zone name.
3) Click picture or camera icon to change light zone picture.
4) Click light type icon to change light type, there are 6 kinds light type you can select:
Dimmer, Color temperature,RGB,RGBW,RGB+CCT or On/off Switch.
When light type is changed, firstly press match key or re-poweron of your LED controller, then click below blue Match key.
5) The second way to match light zone with receivers:
choose ‘Lights’,
firstly press match key of your LED controller, then click right ON/OFF key,
the match is done once the LED indicator flash several times fastly.
or firstly re-poweron of your LED controller, then click right ON/OFF key three times
fastly, the match is done once the light blinks 3 times.
Light operation
Enter lights interface,
1) Click right ON/OFF key to turn on or turn off each zone light,
2) Click bottom-right On/Off key to turn on or turn off all zone light,
3) Click left picture to enter each zone’s light interface.
Scene operation
1. Save : 1) Enter lights interface, change each light zone’s color or on/off state.
2) Enter scene interface, long press any of 8 digital key, save the current light effect into 1-8.
2. Recall : Enter scene interface, short press any of 8 digital key, recall saved light effect.
